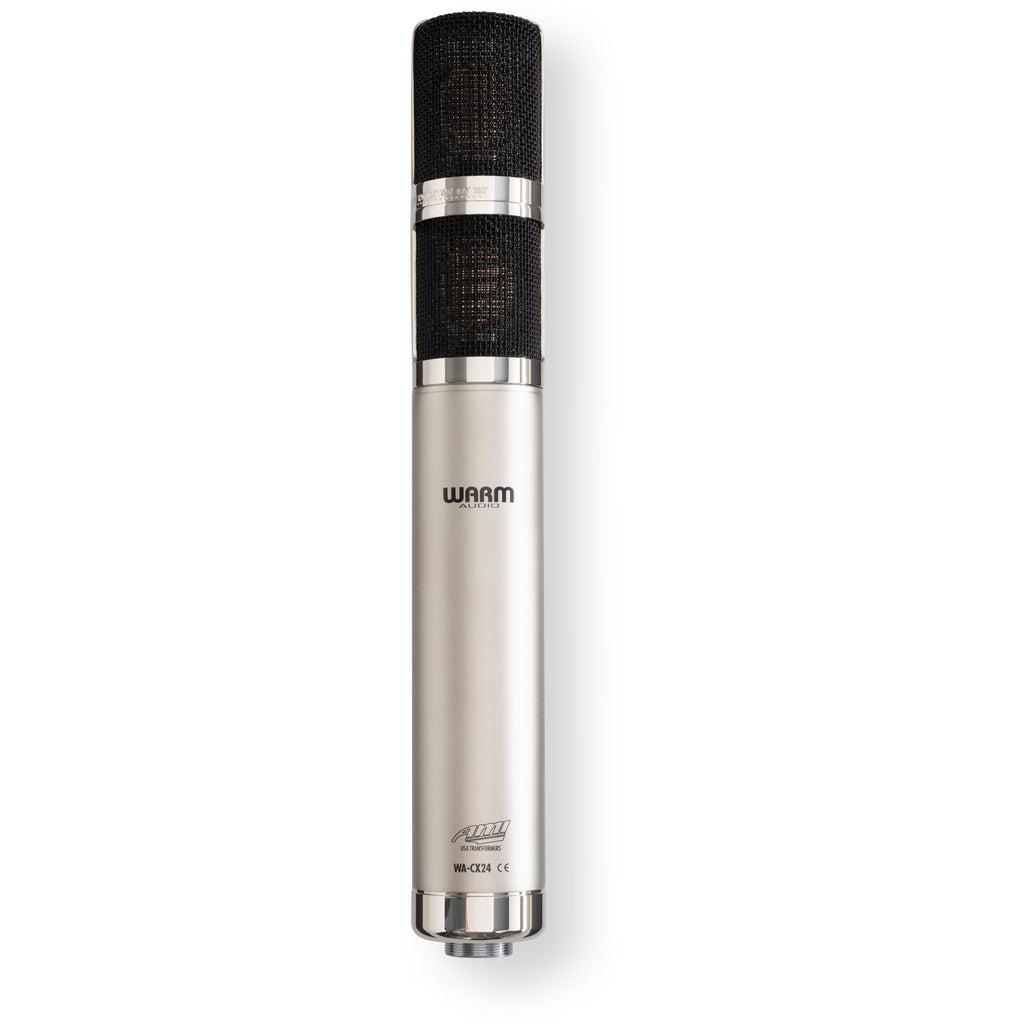

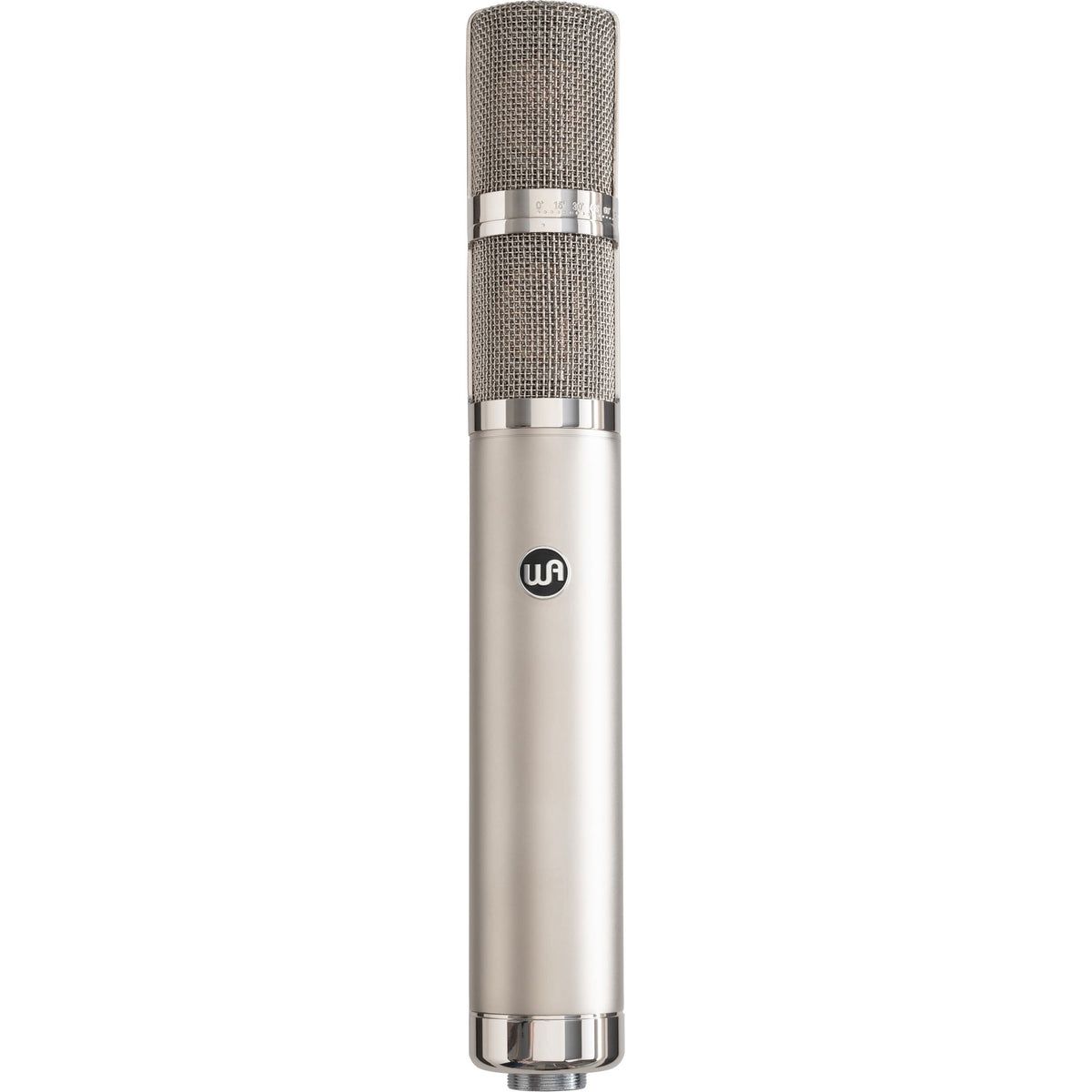

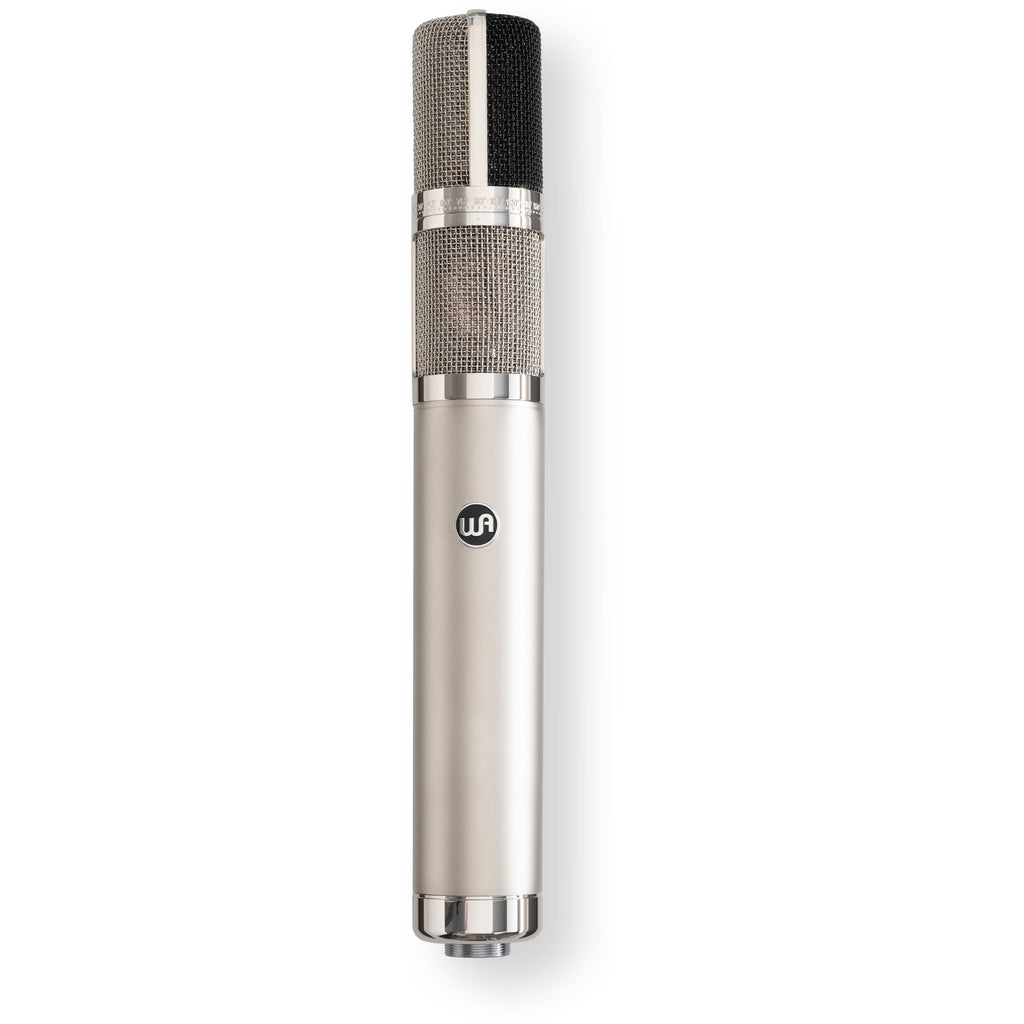

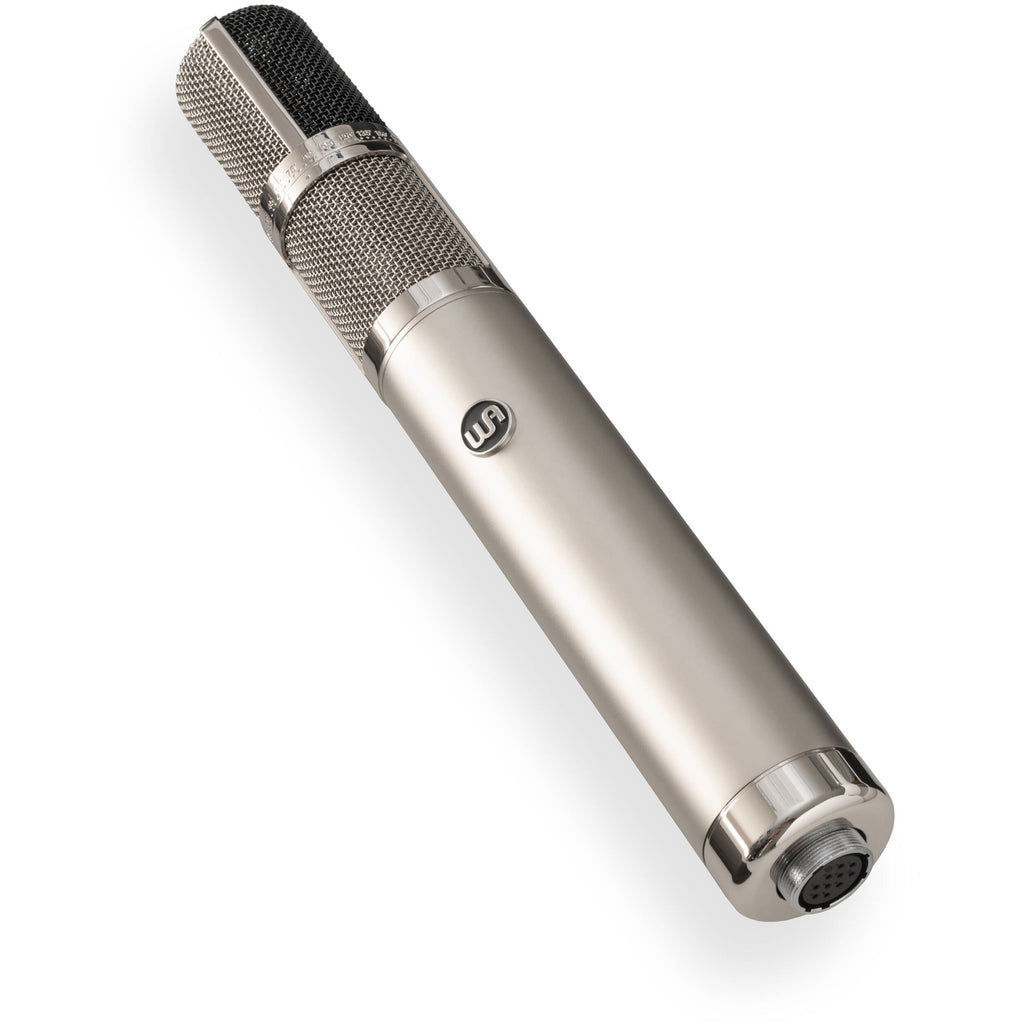

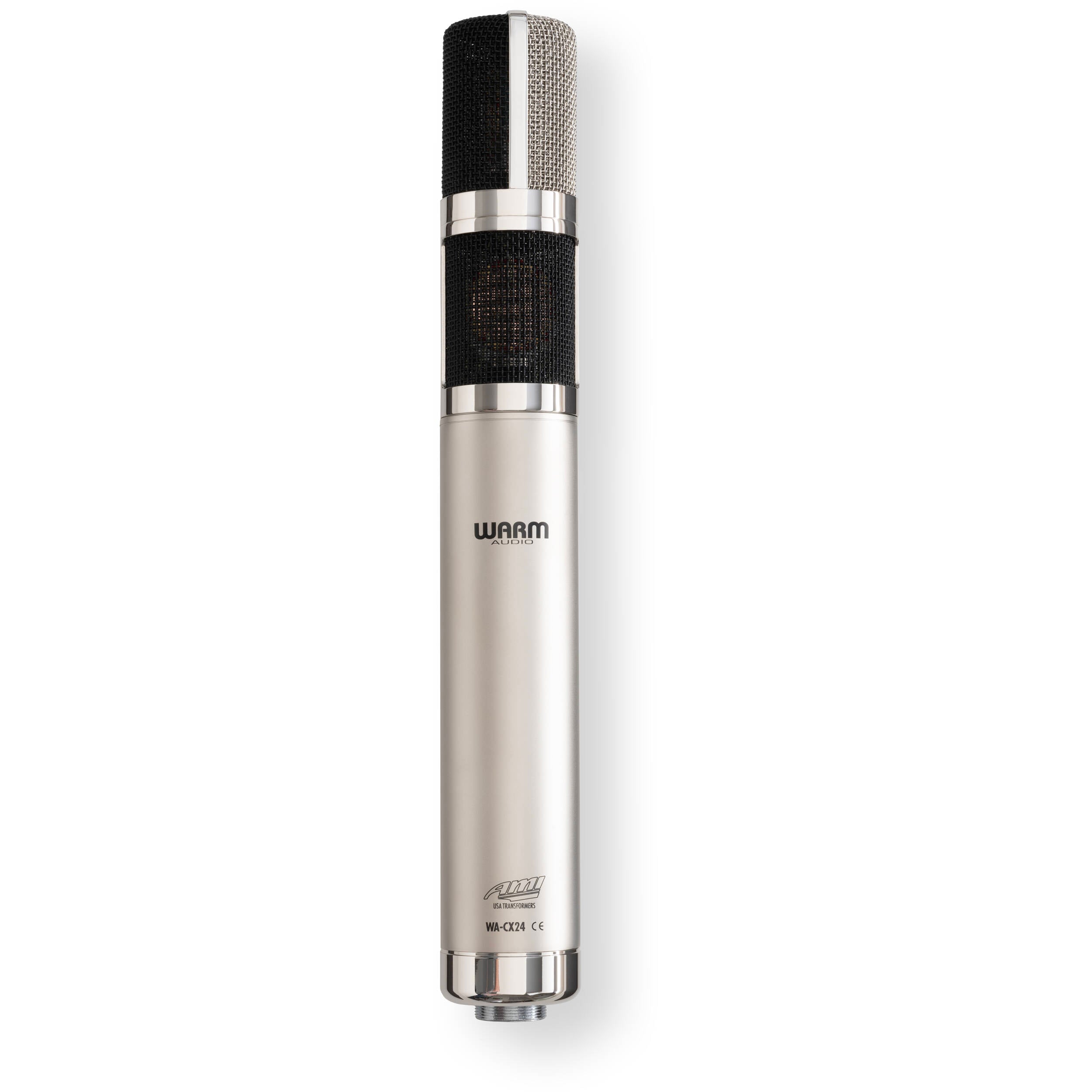

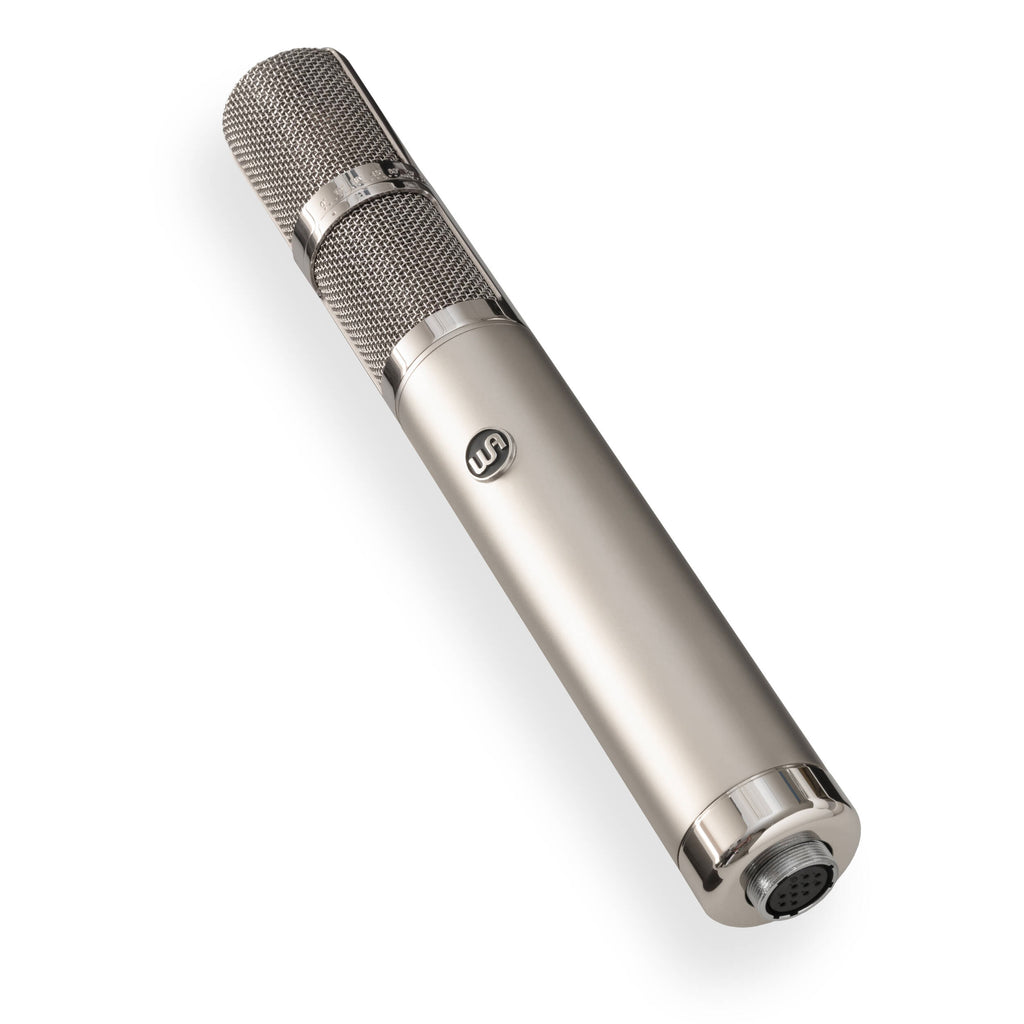

Warm Audio WA‑CX24 – Professional Stereo Tube Condenser Microphone

The WA‑CX24 faithfully recreates the legendary AKG C24 stereo tube condenser mic, offering two large‑diaphragm CK12-style capsules with independent rotation and pattern control. Built around a premium 12AY7 tube and TAB‑Funkenwerk output transformers, it delivers lush, three-dimensional recordings—perfect for vocals, piano, drums, acoustic ensembles, and orchestral applications.

Key Features

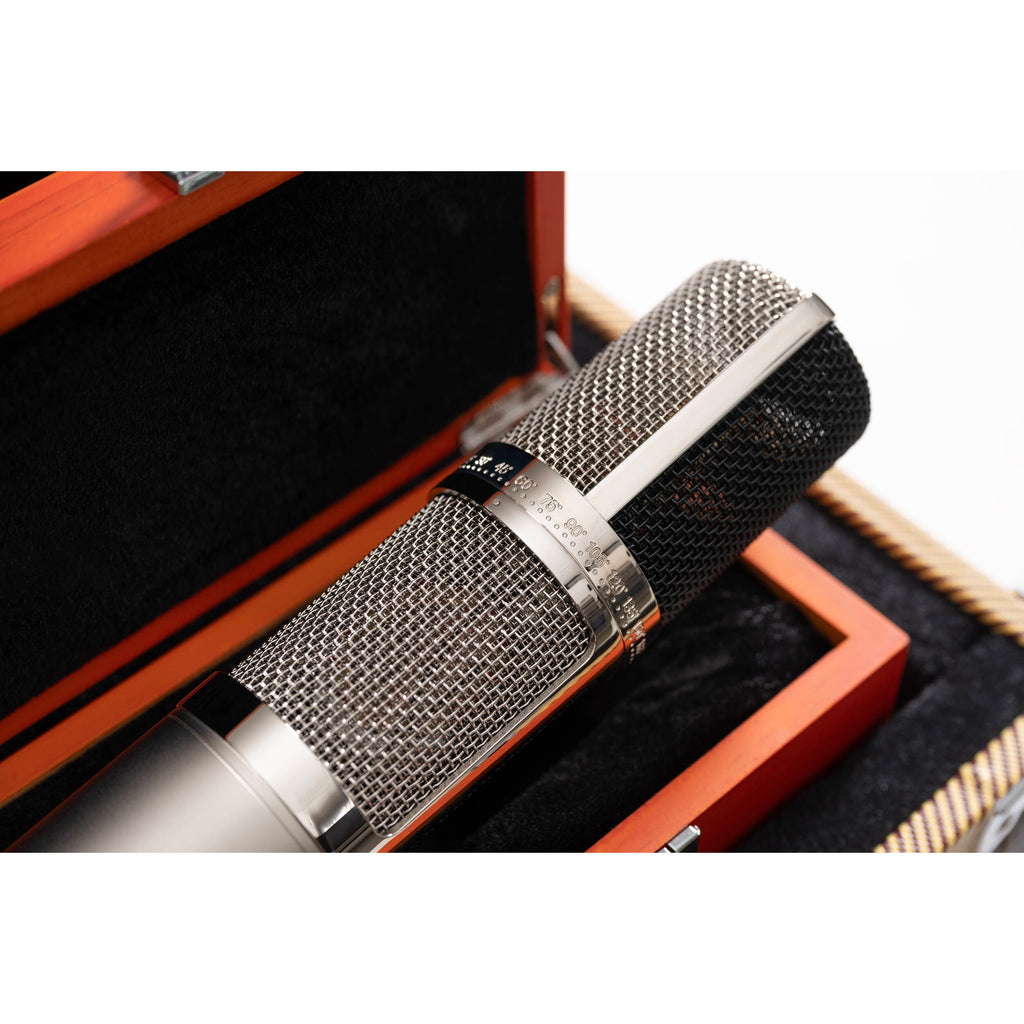

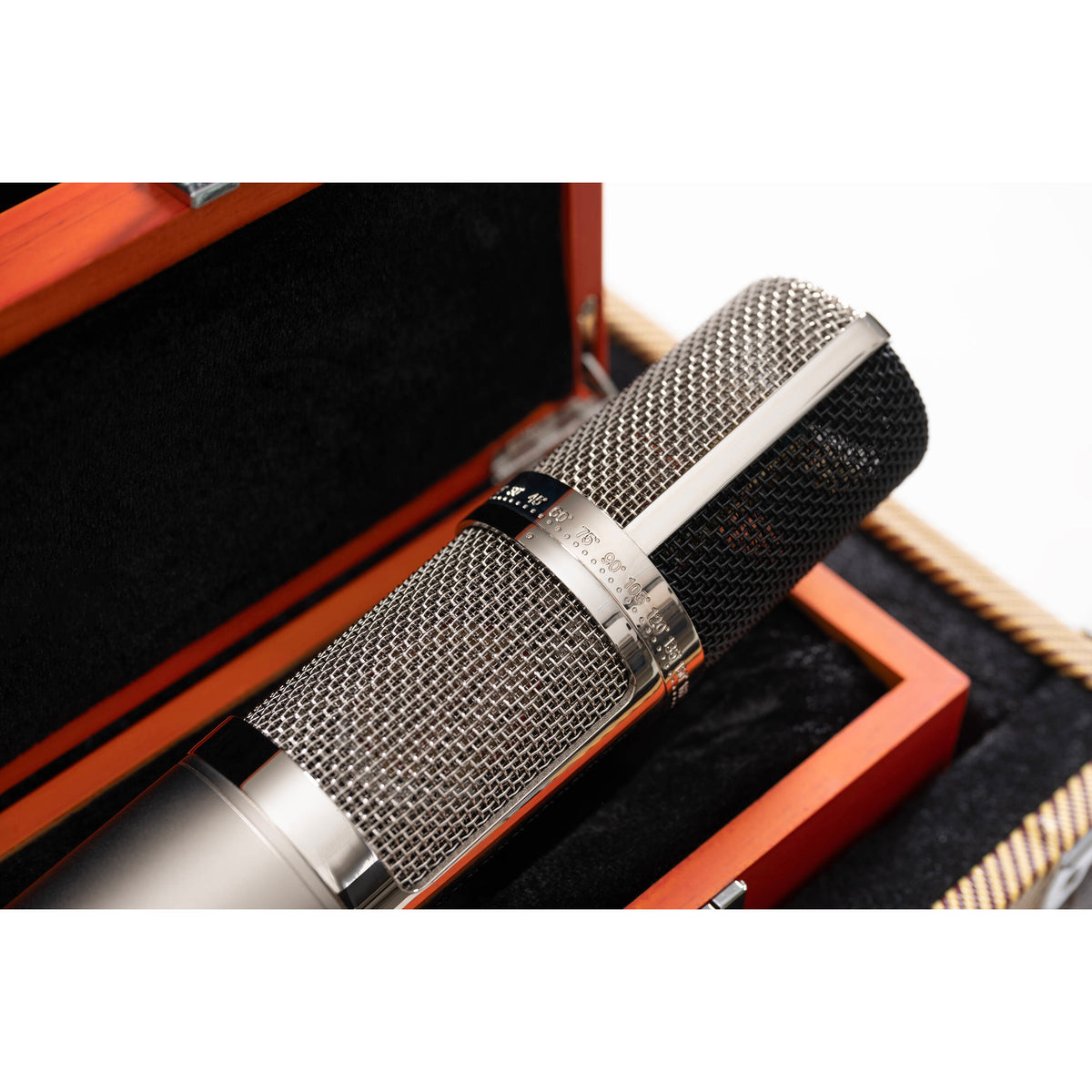

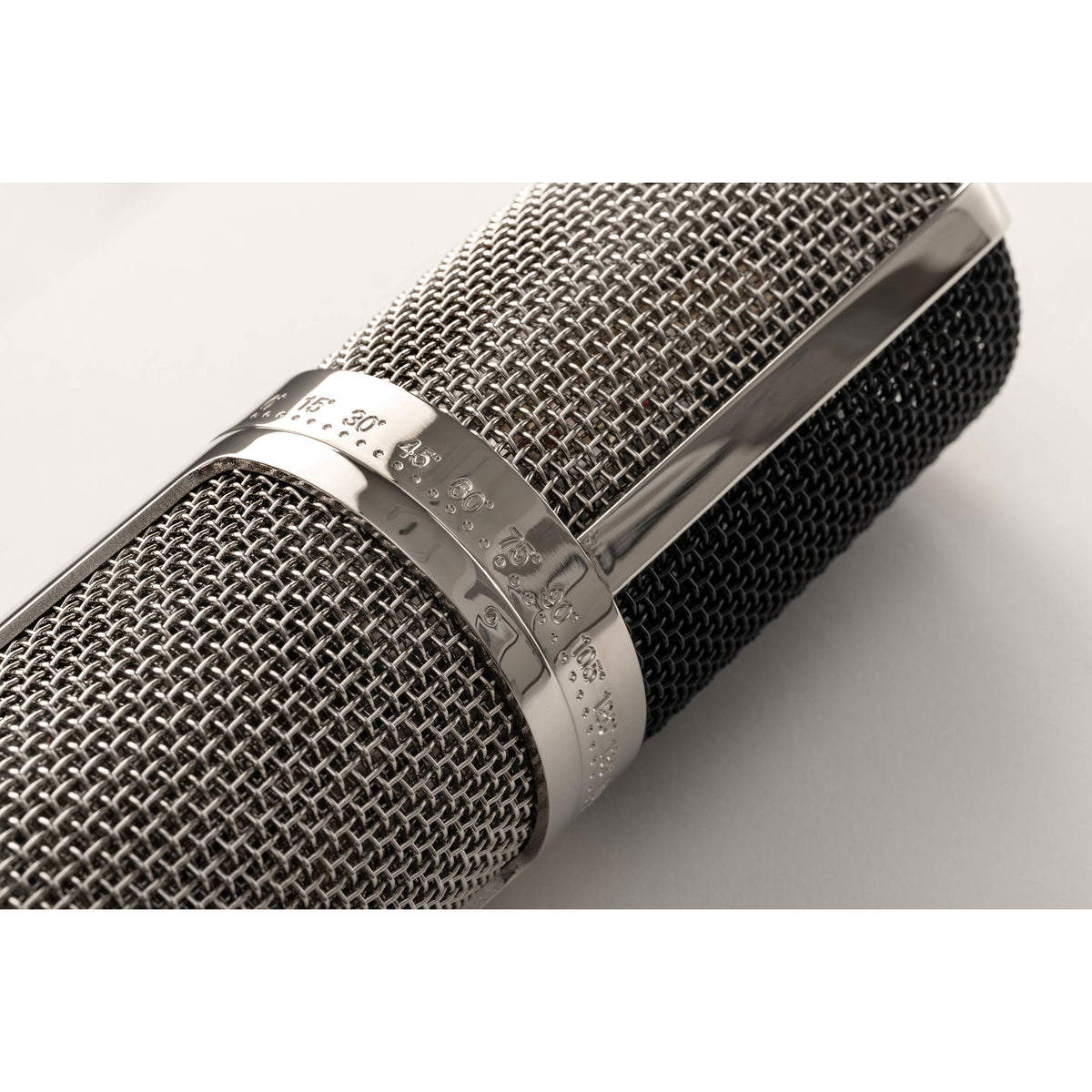

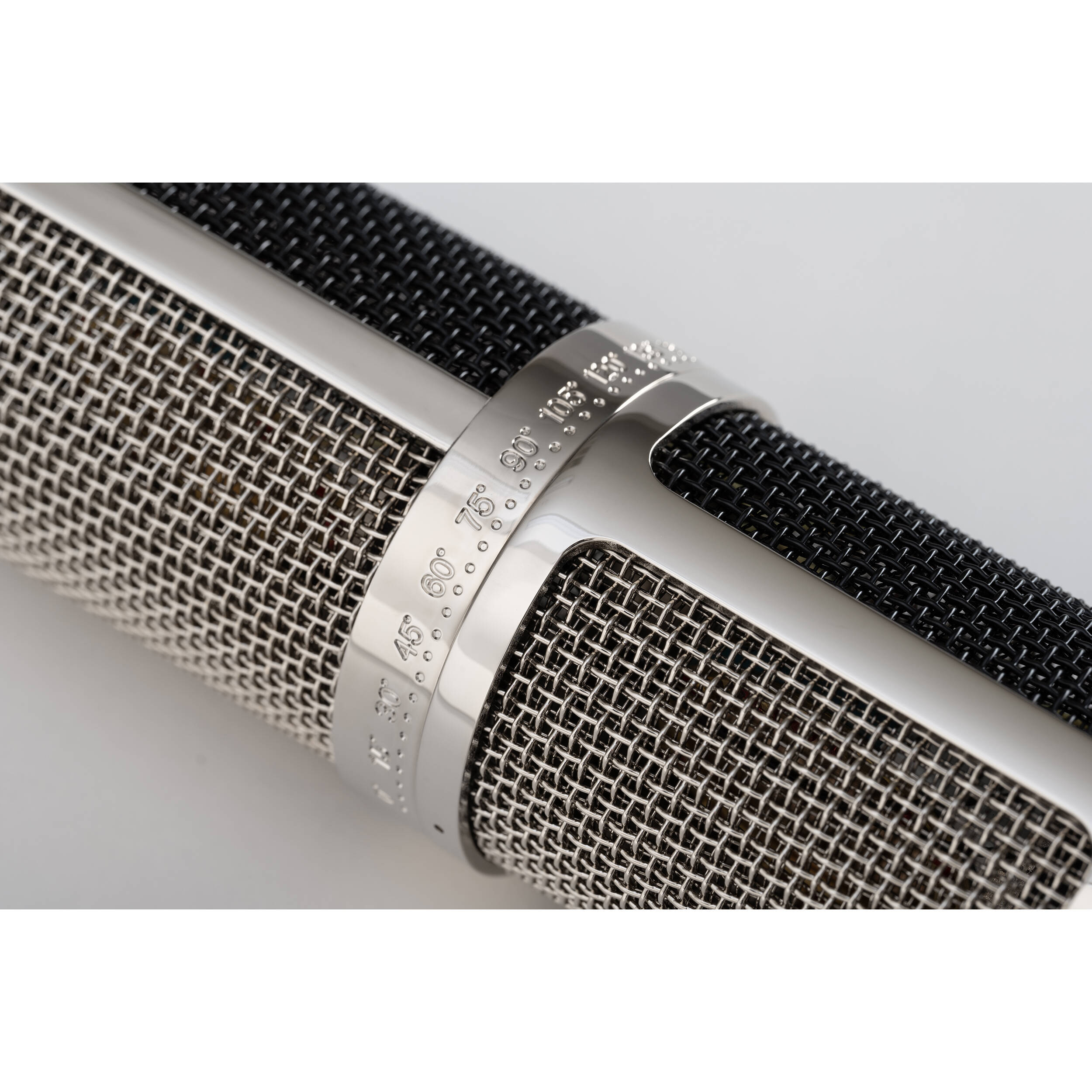

• Faithful C24 recreation: Dual CK12-style brass capsules with full 180° rotation for XY, MS, Blumlein, or custom stereo imaging
• Nine polar patterns: Cardioid, omni, figure‑8 plus six intermediate patterns, independently set per capsule
• 12AY7 vacuum tube: Vintage warmth and clarity with smooth high end
• TAB‑Funkenwerk USA transformers: Maintains phase accuracy and sonic integrity
• Premium components: Polystyrene/WIMA caps, brass chassis, and Gotham 9‑pin cable included

Customer Benefits

Achieve pro-grade stereo recordings without phasing issues. The WA‑CX24 delivers rich, natural sound with flexible stereo options—ideal for capturing instruments or ensembles with precision and warmth in any studio or live setting.

Quick Specs

• Capsules: 2 × CK12-style all-brass, edge-terminated
• Polar Patterns: 9 per capsule, rotatable XY stereo
• Tube: 12AY7
• Transformers: 2 × TAB-Funkenwerk USA T14
• Frequency Response: 30 Hz–20 kHz
• Max SPL: 149 dB
• Output Impedance: 200 Ω
• SNR / Noise: 73 dB / 22 dBA
• Dimensions: 356 × 50 mm
• Weight: 1.4 kg

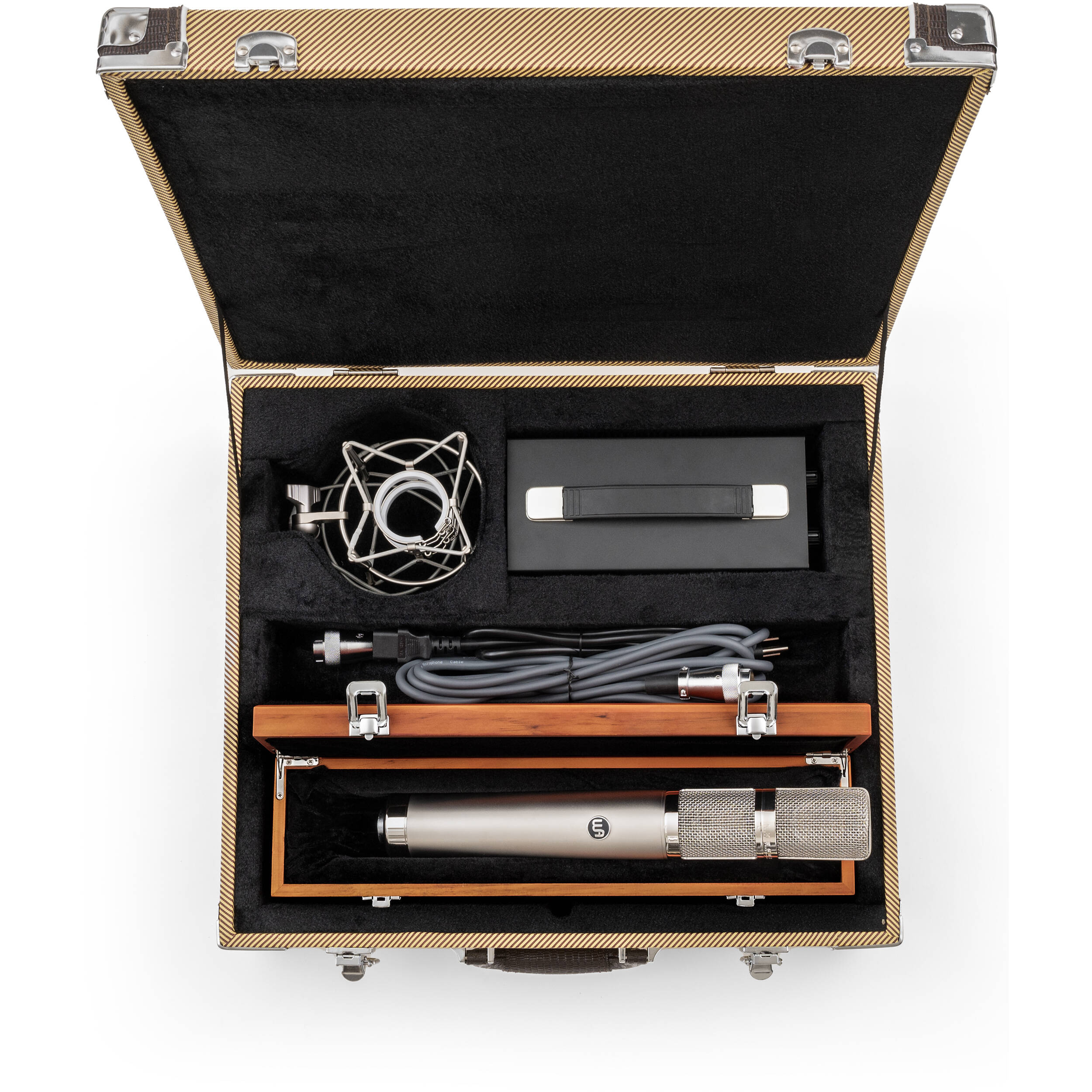

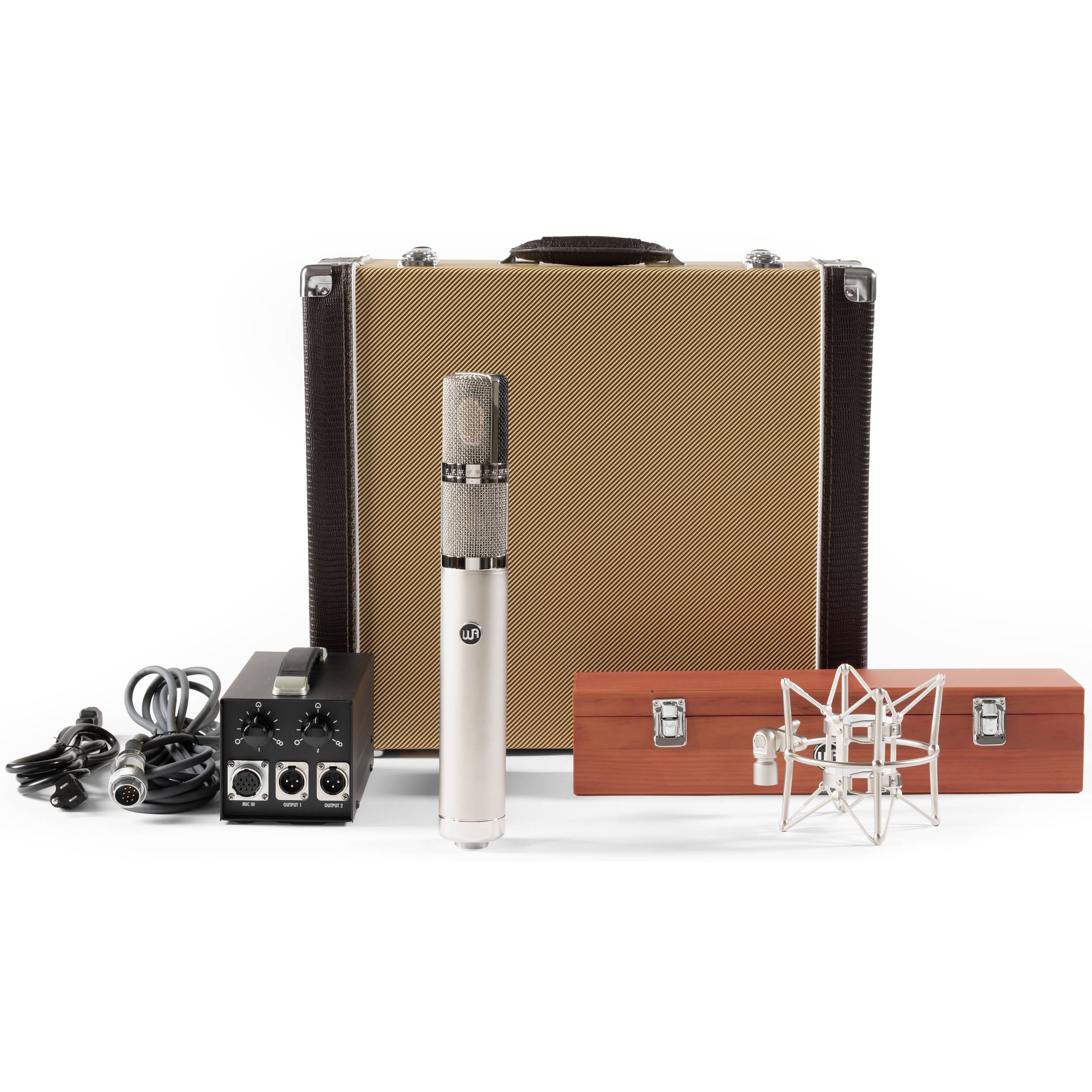

What’s in the Box

• WA‑CX24 microphone
• External tube power supply

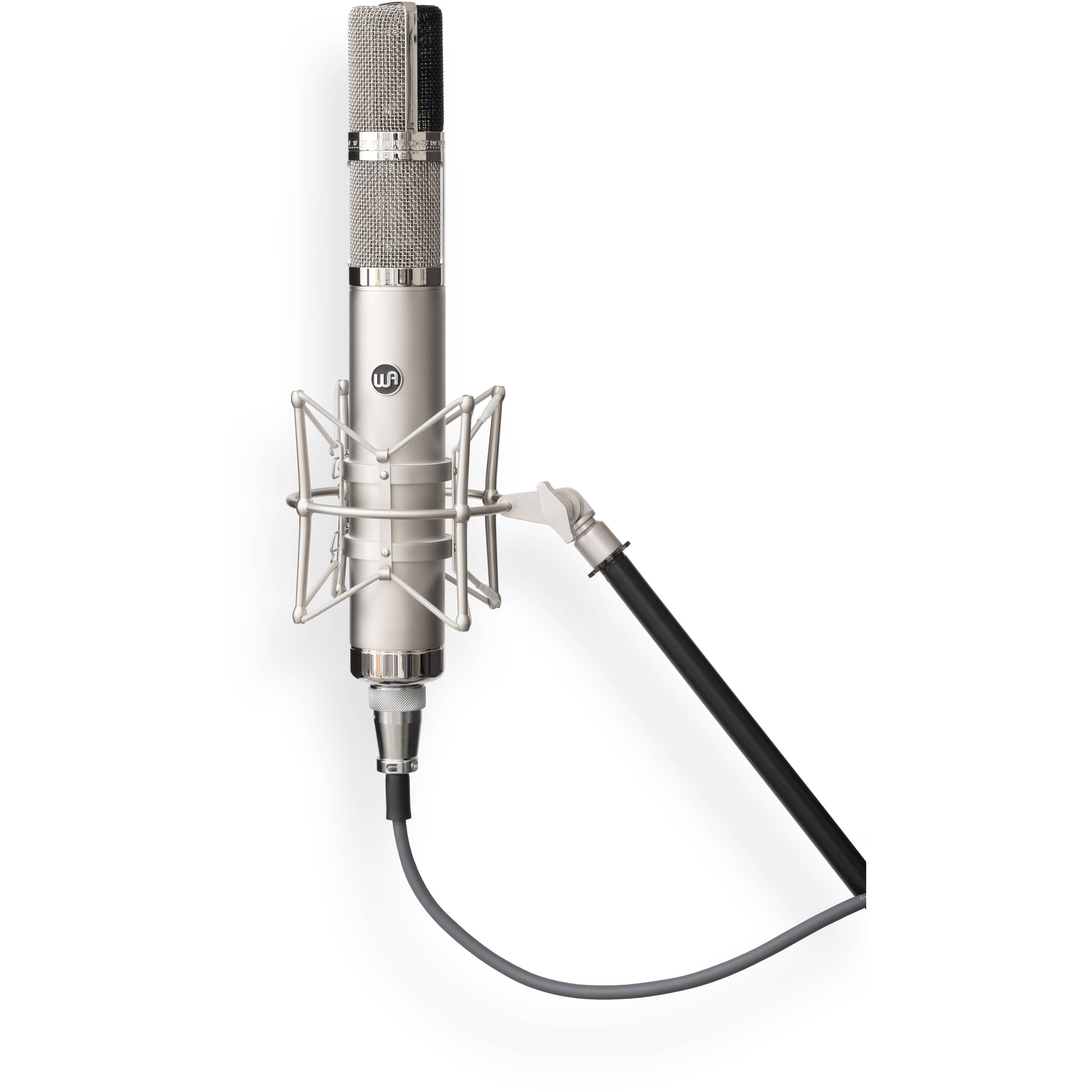

• Shockmount
• Gotham 9‑pin tube cable
• IEC power cable
• Wood display box
• Tweed flight case

Use Cases / Ideal For

Perfect for stereo vocals, piano, drum overheads, acoustic instruments, chamber groups, and orchestral recordings. Ideal for studio engineers seeking lush stereo depth and true vintage tube tone.

Compatibility

Requires external tube power supply (included). Compatible with all pro audio interfaces and preamps accepting standard line-level outputs from the included PSU.

Pros & Cons

✅ Pros:

• True stereo tube design with 9-pattern flexibility
• Rich, classic analog warmth with high headroom
• Complete accessories included for studio use
• Exceptional value compared to vintage equivalents

⚠️ Cons:

• Bulky and requires external power supply
• Not ideal for untreated or noisy environments

The Warm Audio WA‑CX24 revives a classic stereo recording icon with premium components and incredible value. With studio-grade warmth and flexibility in a modern build, it’s an essential tool for professional engineers—experience it now at Soundium.
