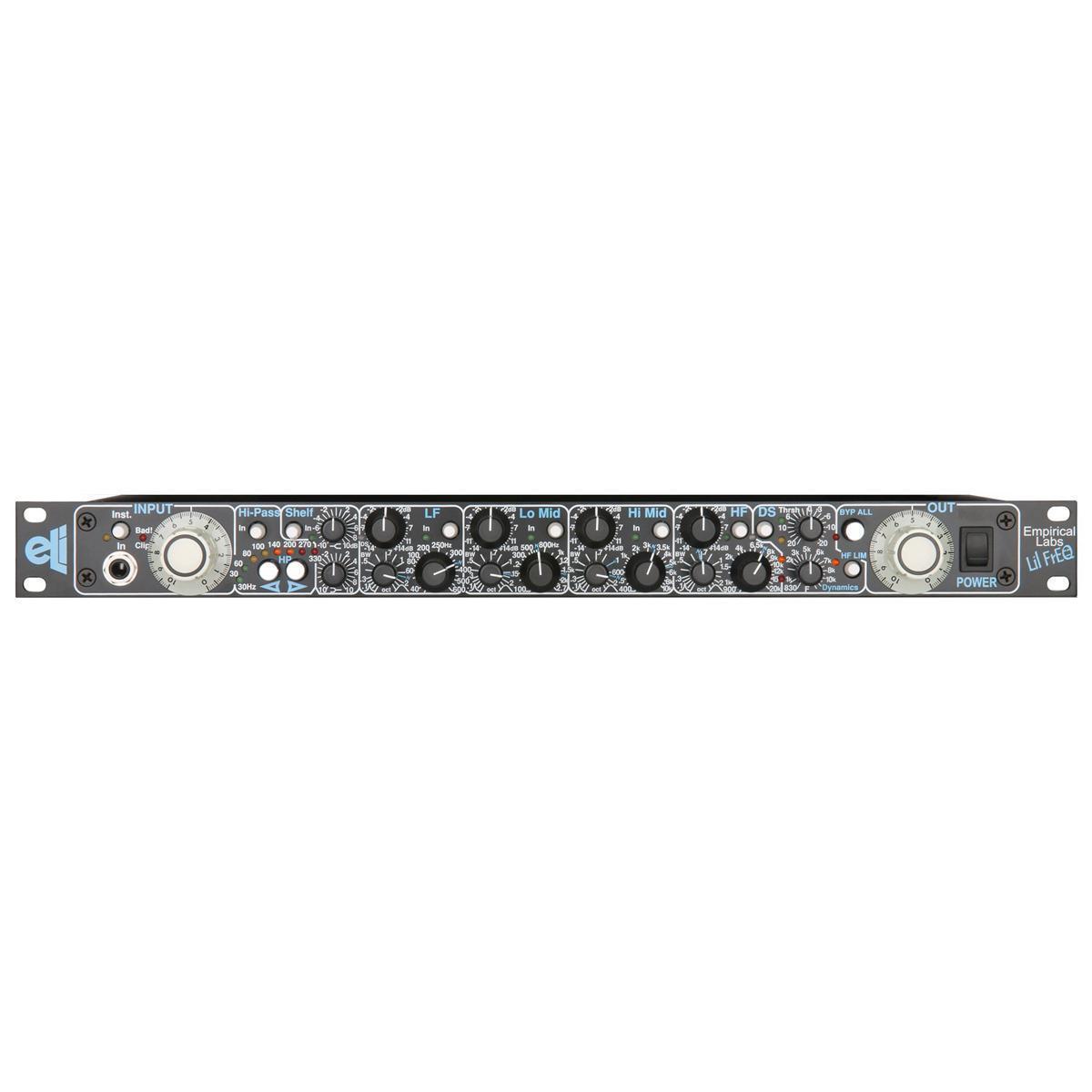

Empirical Labs Lil FrEQ – 1U Analog EQ with Dynamic Section & Instrument Pre

The Lil FrEQ is a breakthrough in analog equalization—a single-rackspace powerhouse offering six creative EQ types plus a high-performance dynamic section. With ultra-clean parametric bands, musical shelving, de-ess/soft-knee limiting, and even an instrument input, it delivers mastering-grade tone and intuitive control—crafted for professionals and curated by Soundium.

Key Features

• High-pass filter: Sharp 3rd-order “colored” filter with eight selectable cut frequencies and responsive LED indicators.
• High & low shelving: Smooth, musical tone shaping for subtle or bold tonal sculpting.
• Four parametric bands: LF, Lo-Mid, Hi-Mid, HF with gain, Q, and frequency controls, operable at below 0.0007% THD.
• Dynamic EQ section (DS): Use as a natural-sounding de-esser or HF soft-knee limiter—highly musical, compressor-based tonal smoothing.
• Instrument input / DI: Front-panel jack for connecting bass or guitar directly, with ultra-clean circuitry and low distortion.
• Dual outputs: DC-coupled active output plus Class-A transformer output for tone variety and analog warmth.

Customer Benefits

The Lil FrEQ offers precision and personality in one compact unit. Its clean parametric bands and flexible filtering enable refined tone sculpting, while the DS section smooths sibilance or harsh tops gracefully. With its DI capability and output versatility, it doubles as a tone-enhancing preamp, making it perfect for tracking, mixing, or mastering.

Quick Specs

• Frequency response: 5 Hz–140 kHz (transformerless I/O); 10 Hz–110 kHz (transformer output)
• Dynamic range: ~120 dB from max to noise floor
• Distortion: 0.00056%–0.005% depending on mode; DS section under 0.005%
• High-pass frequencies: Eight presets from 30 Hz to 330 Hz
• DI input: Instrument frontend with <0.0007% distortion, ~114 dB dynamic range
• Outputs: Active balanced plus transformer-coupled
• Bypass: Section-specific and global bypass controls
• Dimensions: 1U rack height, standard 19″ width
• Build: Hand-wired, high-reliability design with military-spec components and 3-year warranty

What’s in the Box

• Empirical Labs Lil FrEQ unit
• IEC power cable
• User manual and recessed recall chart

Use Cases / Ideal For

Ideal for mastering engineers, vocalists, and producers needing versatile, high-fidelity analog EQ. Use it to smooth sibilant vocal tracks, add warmth via transformer output, DI bass or guitar with tone control, or perform precise equalization with musical convenience.

Compatibility

Fits standard 1U rack systems. XLR and ¼″ I/O ensure integration with outboard and digital workflows. Section bypass and visual feedback make it studio- and live-ready.

Pros & Cons

✅ Pros:

• Exceptional analog EQ quality and tonal flexibility
• Dynamic section doubles as soft-knee limiter or de-esser
• Instrument input with high-quality preamp—unique in EQ units
• Transformer output adds vintage color and warmth

⚠️ Cons:

• Complex panel may overwhelm beginners
• Single-channel design—requires dual units for stereo tracking or mixing

The Empirical Labs Lil FrEQ combines sonic purity, creative versatility, and intuitive control into a compact analog unit—a studio tool that elevates any signal chain. Precisely crafted by Soundium.
