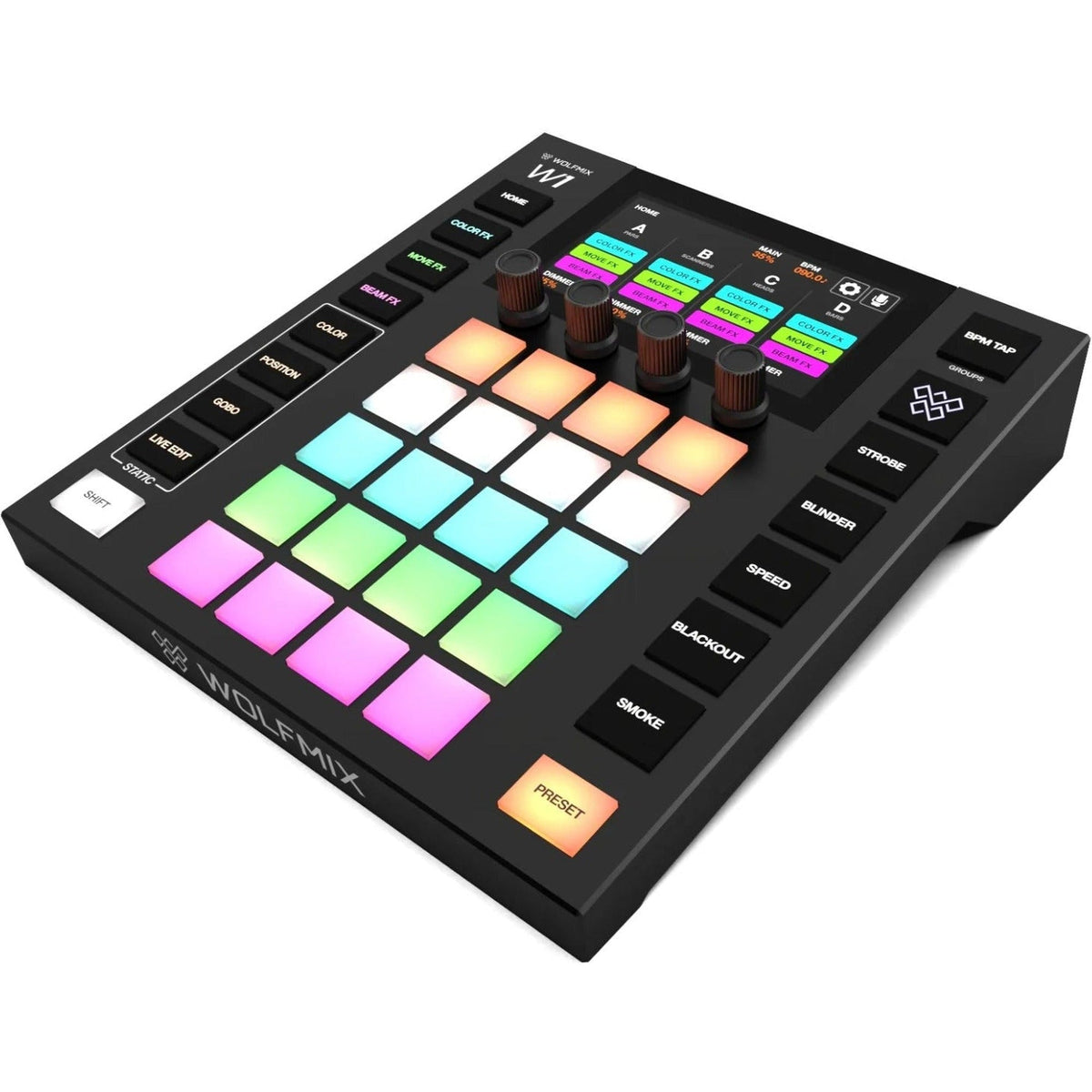

Wolfmix W1 MK3 – Standalone DMX Controller with Live FX & Music Sync

The Wolfmix W1 MK3 is the latest generation of the standalone lighting controller built for lighting designers, DJs, and live performers who want powerful control over complex light shows without being tied to a computer. It runs up to four DMX universes, locks FX to music or BPM, and packs a 4.3-inch touchscreen plus tactile hardware into a compact, stage-ready box. The MK3 revision moves to USB-C power, expands project storage to 100 projects, and taps a 20,000+ fixture library. Soundium supplies this unit for creative visual control.

Key Features

• Standalone operation: Runs shows, effects, and presets without any external computer.
• Three dedicated FX engines: Colour FX, Move FX and Beam FX let you build expressive, layered looks in seconds.
• 4 DMX universes (2 included, U3+4 via add-on): Control up to 2,048 channels across four universes when expanded.
• 20,000+ fixture library (3,500+ on board): Wide fixture support with a custom builder for devices not in the library.
• 37 silicone backlit buttons + 4 rotary encoders: Tactile control with large encoder caps for fast live adjustments.
• 4.3-inch colour TFT touchscreen: Visual feedback, colour pickers, position grids and preset naming via capacitive touch.
• Built-in mic + 3.5 mm line-in: Synchronise FX to ambient sound or a wired audio source; adaptive peak detector keeps response clean.
• USB-C power + USB-A host: USB-C powers the unit; USB-A loads projects from a USB stick, connects MIDI controllers and supports WLINK.
• WLINK + Ableton Link sync: Chain multiple Wolfmix units and stay locked to your set with Ableton Link, OS2L, MIDI or BPM tap.
• Robust build with VESA mount: ABS housing on a powder-coated steel base plate with 100 mm VESA mounting for installs.

Customer Benefits

You get a controller that lets you design complex lighting setups, trigger live FX, and keep everything locked to the music with minimal setup time. Up to 100 projects can be stored and recalled, so transitions stay smooth and full shows travel with you. The combination of physical buttons, encoders and touchscreen gives you hands-on control that feels immediate, while the compact size fits mobile rigs and installed setups alike. For live shows, mobile DJs or venues where visual impact matters, the W1 MK3 helps you look good quickly — Soundium gives you tools that support your flow, not interrupt it.

Quick Specs

• Dimensions (W × D × H): 19.5 × 22.0 × 6.2 cm
• Weight: 1.070 kg
• CPU / Memory: 220 MHz ARM CPU, 8 MB RAM, 16 MB Flash
• Display: 4.3-inch colour TFT, capacitive touch, tinted glass
• DMX I/O: 2 × 3-pin DMX OUT, 1 × 5-pin DMX OUT, 1 × 5-pin DMX IN/OUT with WLINK
• Audio input: Omnidirectional electret mic, 3.5 mm line-in jack
• USB connectivity: USB-C (power, 900 mA; 1,500 mA recommended for MIDI/WLINK), USB-A (MIDI, USB stick, WLINK)
• Mounting: 100 mm VESA on powder-coated steel base plate
• Project / fixture capacity: Up to 100 projects (or 3.5 MB), 680 fixtures & beams, 50 fixture types, up to 5,000 fixture features

In the Box

• Wolfmix W1 MK3 controller
• USB-C cable
• User manual

Ideal For

Live stage shows, mobile DJ rigs, club installations, theatre lighting, festival performances, or any LED and moving-head setup where on-the-fly visual control matters. Also useful for content creators who want synced light effects for video, or venues that need flexible lighting without complex rigging.

Compatibility

Works with standard DMX fixtures and beams via 3- and 5-pin XLR. WLINK lets you sync or chain multiple Wolfmix controllers. USB-A accepts USB sticks or MIDI controllers. FX can be synced from the built-in mic, line-in, Ableton Link, OS2L or BPM tap. Fixtures load from the onboard library or can be built with the internal fixture editor. Firmware updates and extra universes are available through the WTOOLS app.

Pros & Cons

✅ Pros:

• Very powerful feature set in a compact, standalone unit.
• Three FX engines, presets, and sync options make it responsive in live situations.
• Physical controls + touchscreen offer fast and precise operation.
• Modern USB-C power and 100-project storage in a rig-friendly, VESA-mountable build.

⚠️ Cons:

• Learning curve: many features, menus and options to become familiar with.
• USB-power dependency: a stable USB-C supply matters in live contexts.
• Some features (extra universes, WLINK, offline 3D visualisation) need paid add-ons via WTOOLS.

The Wolfmix W1 MK3 delivers a powerful standalone lighting control experience with professional FX, music sync, and flexible outputs. For performers, venues or visual artists who need expressive light shows without a laptop, this controller fits the bill — in line with Soundium's promise of gear that empowers creativity.
