OXI Instruments Split 2 – MIDI Breakout Box for OXI One

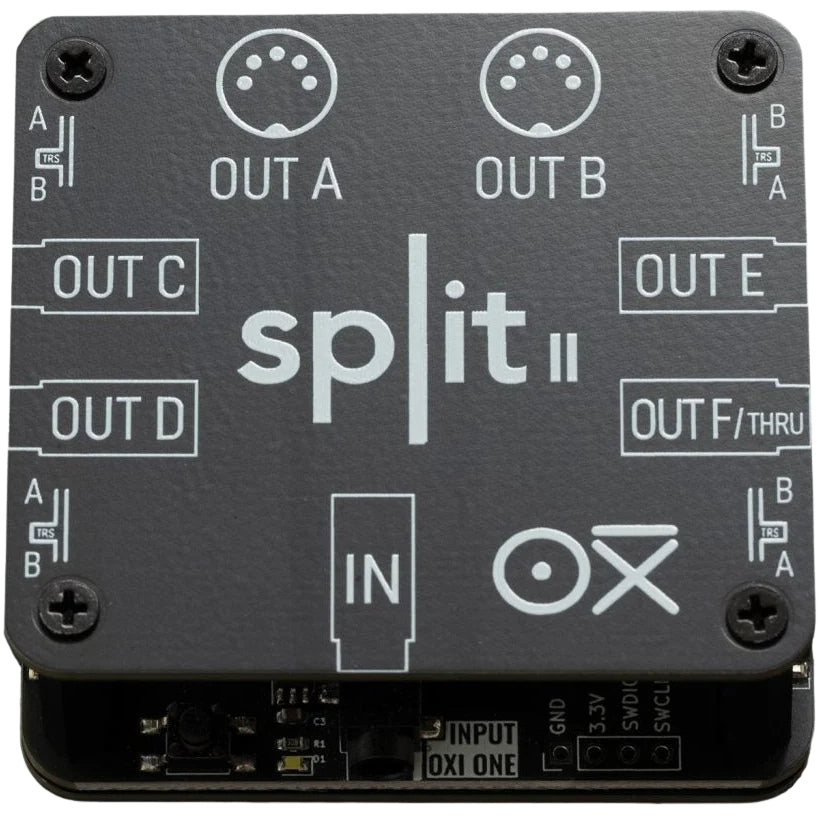

The OXI Instruments Split 2 is a compact MIDI breakout box that expands the OXI One's connectivity to up to six simultaneous MIDI outputs — two DIN and four TRS — giving you direct, dedicated connections to every synth and drum machine in your setup. It increases data transfer capacity and unlocks up to 96 MIDI channels, all from a single TRS cable connection to your OXI One — grab one at Soundium.

Key Features

  • 2× MIDI DIN Out: Standard 5-pin DIN connections for classic hardware synths and drum machines
  • 4× MIDI TRS Out: 3.5 mm TRS outputs for modern compact gear
  • MIDI Out / Thru Switch: Choose between processed MIDI output or direct pass-through per port
  • 96 MIDI Channels: Dramatically increases available MIDI channel count for complex multi-instrument setups
  • Single-Cable Connection: Connects to OXI One via included TRS cable — no power adapter needed

Customer Benefits

Without Split 2, the OXI One has limited physical MIDI outputs. Split 2 removes that bottleneck, letting you connect six instruments simultaneously with independent MIDI routing. The Out/Thru switch per port means you can daisy-chain some instruments while sending dedicated data to others — maximum flexibility with minimum cable clutter.

Quick Specs

  • MIDI DIN Out: 2×
  • MIDI TRS Out: 4×
  • Mode: MIDI Out / MIDI Thru (switchable)
  • MIDI Channels: Up to 96
  • Connection: TRS cable to OXI One (included)
  • Power: Bus-powered from OXI One
  • Compatibility: OXI One & OXI One MKII

What's in the Box

  • OXI Instruments Split 2
  • TRS connection cable

Use Cases / Ideal For

Essential for OXI One users with multiple hardware synths, drum machines, or MIDI-controlled effects who need more than the built-in MIDI outputs. Perfect for dawless live setups and studio configurations where every instrument needs its own dedicated MIDI connection.

Compatibility

Compatible with OXI One (original) and OXI One MKII. Not compatible with other MIDI devices — designed exclusively as an OXI One expansion.

Pros & Cons

✅ Pros:

  • 6 simultaneous MIDI outputs (2 DIN + 4 TRS)
  • Up to 96 MIDI channels from one sequencer
  • Out/Thru switch for flexible routing
  • No external power needed

⚠️ Cons:

  • Works only with OXI One / OXI One MKII
  • No standalone MIDI functionality

The OXI Instruments Split 2 turns your OXI One into a true MIDI hub — six outputs, 96 channels, and zero hassle. The essential companion for multi-instrument setups. Check it out at Soundium.
